What is Azure Site Recovery and how to perform Failover Testing

Azure Site Recovery

Azure Site Recovery is part of a Business Continuity and Disaster Recovery Service. It is like having a backup server. The idea behind Azure Site Recovery is to replicate the on-premise server on the cloud. This is an ongoing process- if you ever face an IT Outage, this can come into play and save the day.

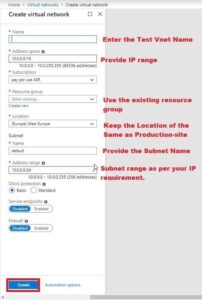

Create a different VNET under the Azure environment for performing the Failover Test.



  1. Go to Virtual Network on the left side of the dashboard

Virtual Network

2. Click on ADD



  • Get the Public IP address to verify the VM’s by login into it. To get the Public IP Got to ALL Resources > Select Add Public IP address



Why perform a failover test?

A test that is run to validate a systems ability to bring operations back to normal during an IT Outage or a server failure and accommodate extra resources.

When the on-premise server gets down you fail over to Azure, post which, Azure VMs are created.

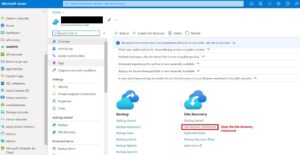

Open the Azure Site Recovery Dashboard

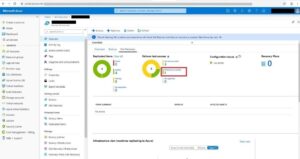

  • Click on the Option of “Test Recommended

  • Select the option of Failover Test by clicking on the ellipses “…”.

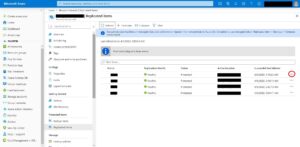

Select the option of Failover Test by clicking on

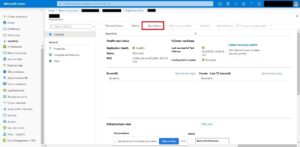

  • Click on Test Failover

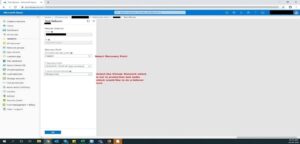

  • Select the Recovery Point and Virtual Network which you created for performing the Test.



  • It performs the Test automatically in the background. On Dashboard > Virtual Machines > You will observe, it will be creating the VM.

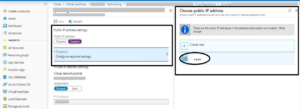

  • You can assign the Public IP on the automatically created VM and then Connect the RDP /SSH from your end.

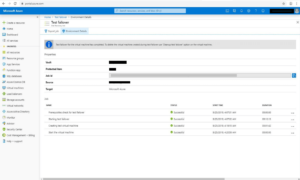

  • Under Failover logs, you will observe the status of each ongoing activity.

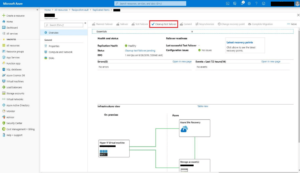

  • Once you see that all the activities are completed and observe the green checkmark status. Then go ahead and run the “Cleanup Test Failover”.



  • Now to clean up the things which were created during the Test Failover while Testing-



  • Delete the Public IP and Virtual Network which were created earlier. To delete them – All Resource> Select Public IP and virtual network and click on Delete.





  • Once the test is completed for the VM, after a few mins you will see that VM under Performed successfully.
